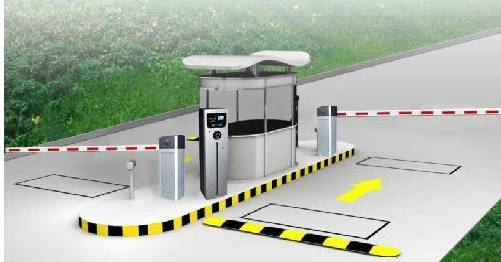

Intelligent Parking Lot Management
1.System Introduction
The intelligent parking lot management system is aimed at the needs of high-grade communities, enterprises and institutions for intelligent parking. It includes computer technology, short-range microwave communication technology, image digital processing technology, automatic control technology, etc. In order to realize the automatic identification and information management of vehicles, improve the efficiency and safety of vehicles, and count the data of vehicles entering and leaving, it is convenient for managers to dispatch, so as to lighten the labor intensity of managers and effectively prevent the loopholes of charges.
2.System Composition
Electronic license plate (storage of corresponding vehicle information), driver card (optional, storage of corresponding driver information, mainly for the purpose of strengthening supervision), access antenna, remote reader, access controller, access control computer, Software includes management software and card writing software.
3.System Workflow
When the vehicle enters or exits the antenna communication area, the antenna exchanges bidirectional data with the electronic identification card by microwave communication, reads the relevant information of the vehicle from the electronic card, reads the relevant information of the driver on the driver's card, automatically identifies the electronic card and the driver's card, and judges whether the card is valid or not and the driver's card is combined. The lane control computer displays the license plate number and driver's information corresponding to the electronic vehicle card and driver's card. The lane control computer automatically stores the information of time, vehicle and driver into the database. The lane control computer judges according to the data read as follows:
♦Normal Card: When the license plate number and driver's card are legitimate, the moving door opens automatically (4 meters), and the moving door closes automatically after the vehicle leaves the coil 1.
♦Unauthorized Card: When the read car or driver's card is unauthorized, the system alarms and snaps and saves pictures, the movable gate does not open;
♦No truck: When the trigger coil of the vehicle is 2, the system fails to read the car card and driver's card, and the system determines that there is no truck. The system alarms and snaps and saves pictures, and the movable door does not open.
♦Illegal cards: Non-unit cards, although read data by card reader, but not the unit, the system alarms and snaps to save pictures, the movable door does not open.
4.System Features
♦Distance: Reading within 10 meters is easy to achieve. Due to the actual requirements of vehicle access control, the card reading distance should not be too long. This scheme does not need to be manually close to the card swipe or to pass through the designated area in order to realize automatic identification, which can avoid the problem that drivers must swing the window close to the reader to swipe the card in bad weather. During rush hours, it can effectively alleviate the congestion caused by too many vehicles in and out of the warehouse and queuing to swipe cards.
♦Stable operation: Active card reading distance is stable, not easily affected by the surrounding environment. Moreover, the active card can effectively break through the shielding function of the automobile explosion-proof metal net and exchange data with the reader smoothly.
♦Supporting high-speed mobile reading, the mobile speed of the ID card can reach 200 km/h.
♦High reliability, environment temperature -40 ℃ -85 ℃ can completely normal operation, especially in the north and south of the high temperature more dominant, can effectively resist the dust and pollutants in the air.
♦It saves manpower and improves work efficiency and economic benefits.
♦Automation design, fast access to vehicles, improve grade and efficiency, provide high quality, safe and automatic parking services.
♦Can accurately distinguish between free vehicles and foreign vehicles.
♦High anti-jamming: No special requirements for all kinds of jamming sources on site, easy to install.
