Android smart display terminal

time:2019-03-18      classification:Vehicle external equipment

1. Product Overvview

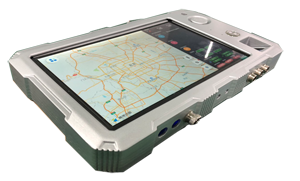

SMART DISPLAY TERMINAL is an intelligent vehicle management terminal independently developed by the new Android platform.
It is equipped with a fast 6-core processor and a 4-core GPU processor. The device terminal is equipped with face recognition, fingerprint recognition, alcohol detection and NFC identity detection. Compatible with vehicle OBD information collection, real-time management of a variety of environmental sensors, full-featured, easy to achieve driving training vehicles, school buses, taxis, buses, trucks and other driving process management, effectively protect driving safety.

2. SPECIFICATION

Shell Material	ABS plastic housing
Size	321*191*39mm
Working voltage	12V
CPU	Double Cortex-A72 large core + four Cortex-A53 small core
Operation system	Android7.1
DDR	2GB
Camera	Front camera 1 MP USB camera,resolution 1280*720
Memory	16GB
Display	10.1”LCD resolution 1280*800

• Support fingerprint recognition
• Support GPS positioning
• Support facial recognition
• Support intercom call
• Support alcohol detection
• Support SOS one-click for help
• Support NFC data acquisition
• Support SD card( optional)

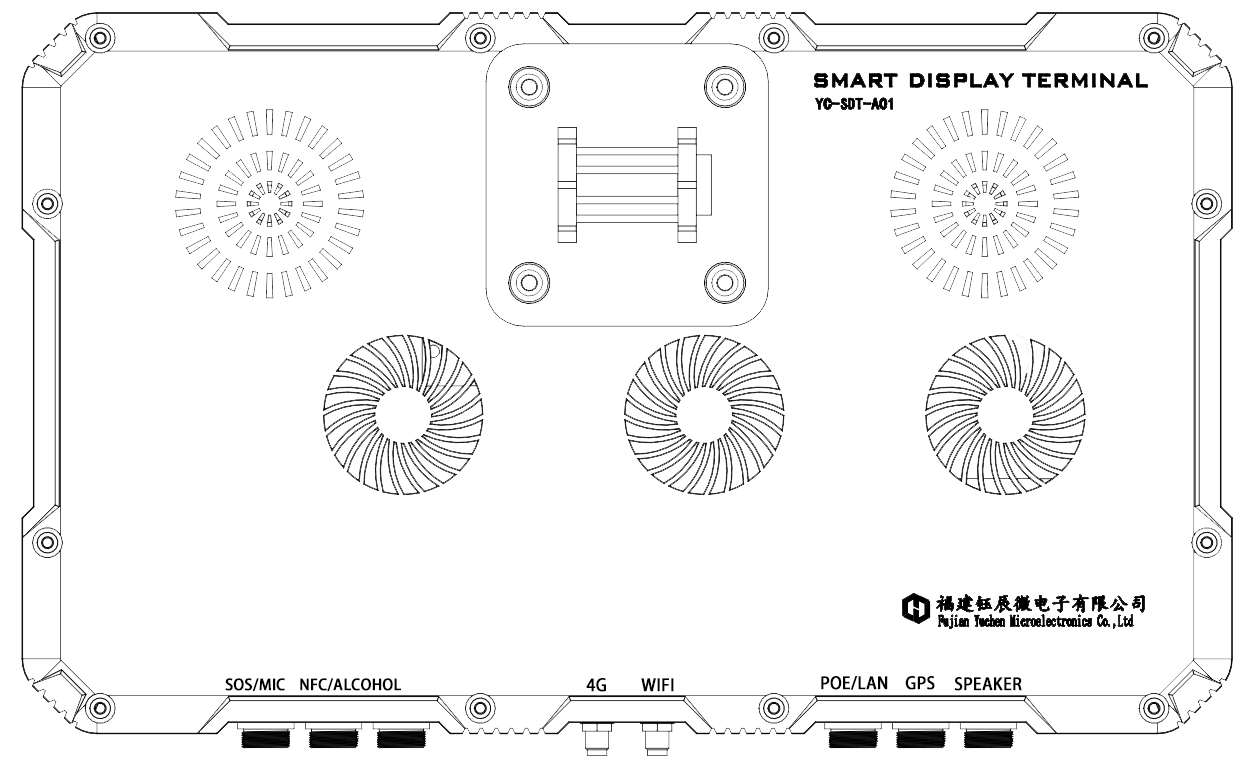

SOS/MIC	6-core aviation head one-click for help/MIC interface
NFC/ALCOHOL	6-core aviation head NFC/alcohol interface
4G	4G antenna interface (reserved)
WIFI	WIFI antenna interface(reserved)
POE/LAN	6-core aviation head power/network communication interface
GPS	GPS module interface
SPEAKER	2-core loudspeaker interface
